Rim Joist & Band Joist Spray Foam in Savannah, GA | Basements, Cantilevers & Rim Joists

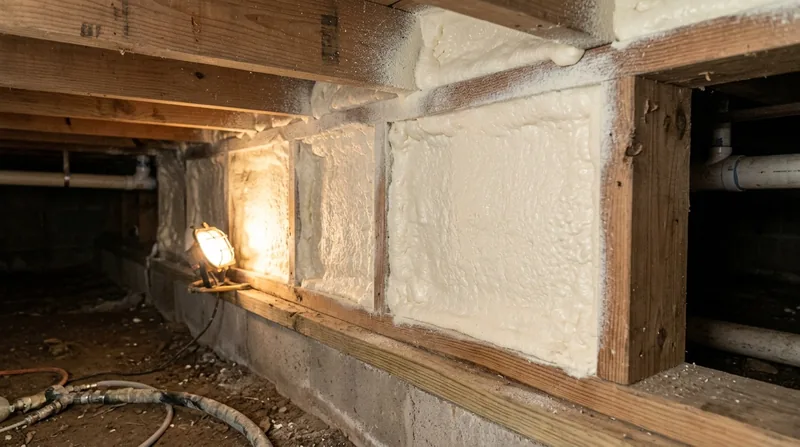

Rim Joist & Band Joist Spray Foam Savannah

Rim and band joists in Savannah's raised crawl-space homes are common weak points for damp coastal air. We foam these gaps to block the drafts and humidity that older Savannah houses let in at the floor line. The Lowcountry's hot, humid summers and mild winters mean moisture drives inward through walls and foundations most of the year, and vented crawl spaces pull in damp air off the Savannah River. Homes in Ardsley Park, Midtown, and fast-growing subdivisions toward Pooler and Richmond Hill all share this vulnerability at the rim joist, where the band board sits on top of the foundation and the rim cavity opens to the crawl space below. A rim joist and band joist spray foam seal stops that inward flow of humid air before it reaches the first floor, cuts drafts that make rooms feel cold in winter and hot in summer, and protects the rim board itself from moisture that can rot wood and harbor mold. We help homeowners across Greater Savannah close these gaps with closed cell or open cell foam, sized and installed to code, with a clear estimate that names the R-value and thickness we will deliver.

Why Rim and Band Joist Foam Matters in Savannah's Raised Crawl-Space Homes

Older Savannah homes built on raised crawl spaces sit exposed to the same humid air that surrounds them. The rim joist, where the band board meets the foundation wall, is the largest uninsulated gap at the floor line. Vented crawl spaces and vented attics were designed to shed moisture by letting air flow through, but in climate zone 2A with high humidity most of the year, that venting strategy pulls damp coastal air directly into the house. The rim cavity sits at the thermal boundary between the unconditioned crawl space and the living space above, making it a direct path for drafts, humidity, and heat loss in winter.

Spray foam seals the rim cavity completely, blocking humid air from entering the living space and reducing the load on your air conditioning system.
Closed cell foam provides a vapor barrier and structural support if the rim board has any flex or if you plan to finish the crawl space later.
Open cell foam works well for rim and band joists where moisture is less of a concern and cost is a priority.
The seal also protects the rim board from moisture that can rot wood and create conditions for mold growth in older Savannah frame houses.
A properly foamed rim joist stops cold floors over unheated crawl spaces and reduces the temperature swing between the first floor and the ground level.

Stopping moisture and drafts at the rim joist is one of the highest-return air sealing jobs in an older Savannah home.

Key info: Savannah's vented crawl spaces were designed for a drier climate. In the Lowcountry, where the water table is high and humidity is constant, a sealed rim joist stops the inward flow of damp air that venting cannot prevent. Homes in Ardsley Park, Pooler, and Richmond Hill all benefit from this simple, high-impact upgrade.

For more detail on how moisture and air leakage work in crawl spaces, see our crawl space spray foam insulation page.

How We Seal Rim Joists and Band Joists in Savannah

Rim joist foam starts with a clear look at the crawl space, the condition of the rim board, and the moisture level in the space. We identify the full rim cavity, any gaps in the existing rim board or rim insulation, and the best entry points for the spray rig. We then prepare the surface, spray the foam to the specified thickness in a single or multiple passes depending on the product and the R-value target, and allow the foam to cure with mechanical ventilation running to manage fumes. The result is a continuous air seal that blocks drafts, humidity, and heat transfer at the floor line.

We inspect the rim cavity and crawl space to confirm the substrate is dry and suitable for foam, and we walk away if the space has standing water or active leaks.
We remove any loose or failing insulation, debris, or obstructions from the rim cavity so the foam contacts the rim board and foundation wall directly.
We mask and protect any HVAC ducts, electrical wiring, or plumbing that runs near the rim so the foam does not encapsulate them.
We spray the foam in controlled passes to the R-value and thickness specified in the estimate, typically 2 to 4 inches of closed cell or 4 to 6 inches of open cell.
We run mechanical ventilation during the cure period, typically 24 to 48 hours, to manage VOC off-gassing and ensure safe re-entry to the crawl space.
We provide a final inspection and a photograph record of the completed seal so you can verify the work and the coverage.

A well-sealed rim joist is a permanent air barrier that requires no maintenance and no replacement over the life of the home.

Example: A 1960s ranch home in Midtown Savannah with a 1,200-square-foot footprint has a rim perimeter of roughly 160 linear feet. Sealing that rim cavity with 3 inches of closed cell foam typically takes 4 to 6 hours on site and costs between $1,200 and $1,800, depending on access and the condition of the existing rim structure. The same job in a smaller 1,000-square-foot cottage on Tybee Island or in a newer subdivision near Richmond Hill follows the same process and similar pricing.

See our air sealing page for more on how foam and air sealing work together.

Rim Joist and Band Joist Spray Foam Methods

Approach	Description	Best for
Closed Cell Rim Seal	High-density foam sprayed 2 to 3 inches thick, provides vapor barrier and R-value of 6 to 7 per inch.	Older Savannah homes with high moisture, rim boards with flex or settling, or crawl spaces planned for future finishing.
Open Cell Rim Seal	Low-density foam sprayed 4 to 6 inches thick, provides R-value of 3.5 per inch and allows vapor transmission.	Rim joists where cost is a priority and the crawl space is already reasonably dry or naturally ventilated.
Rim Joist Top-Up	Adding foam over existing partial insulation or foam that has settled or failed, typically 2 to 3 inches of closed cell.	Homes where the rim was partially insulated years ago and the seal is now incomplete or compromised.
Full Rim Cavity Removal and Replacement	Removing old, failed, or contaminated insulation and spraying a complete new foam seal from the band board to the foundation wall.	Older Savannah homes where the original fiberglass or mineral wool has settled, gotten wet, or is harboring mold or rodent activity.

Rim Joist and Band Joist Spray Foam Cost in Savannah: What to Expect

Rim joist foam in Savannah typically starts at around $650 for a small crawl space or a partial rim seal, and ranges up to $2,500 or more for a full perimeter seal on a large home with difficult access or a complex substrate. The cost depends on the linear footage of the rim, the thickness and type of foam (closed cell or open cell), the condition of the rim board and existing insulation, and how easy it is to access the rim cavity from the crawl space. Homes with a long perimeter, a low crawl space, or existing debris and failed insulation in the rim cavity cost more because the prep work and spray time increase. Homes with a short perimeter, good access, and a clean substrate cost less.

Linear footage of the rim is the primary driver: a 1,000-square-foot home has roughly 130 linear feet of rim, while a 2,000-square-foot home has roughly 190 feet.
Closed cell foam costs more per board foot than open cell but provides a vapor barrier and higher R-value per inch, reducing the thickness needed.
Crawl space access and headroom affect how fast the crew can move and how much prep is required before spraying can begin.
Existing insulation or debris in the rim cavity adds cost if removal is needed before the foam can be sprayed.
Moisture or active leaks in the crawl space may require a separate remediation step before foam can be applied, adding time and cost.

We provide a written estimate with the R-value, thickness, and linear footage specified so you know exactly what you are paying for. Get 2 or 3 estimates from different contractors to compare pricing, methods, and warranty. Avoid any estimate that does not specify thickness and R-value, that promises immediate re-entry, or that is far below market rate without a clear explanation.

See our full pricing page for more detail on how costs vary across different foam types and service areas.

Rim Joist and Band Joist Spray Foam Near Me: What Savannah Homeowners Should Know When Hiring

Hiring a spray foam contractor for rim joist work means checking that the contractor is fully insured, has verifiable experience with rim and band joist sealing, and can explain their method and materials clearly. Ask to see a sample of their estimates to confirm they always specify R-value and thickness. Verify that they run mechanical ventilation during cure and provide a clear re-entry window, typically 24 to 48 hours. Check references from recent jobs in Savannah, Pooler, or Richmond Hill to confirm they show up on time, clean up after themselves, and stand behind their work. Confirm that they understand local permitting rules at your address, because rim joist foam itself rarely requires a permit, but if your crawl space is part of a larger encapsulation or if your home is in a historic district, the building department may have specific rules.

Get written estimates from at least 2 contractors and compare the R-value, thickness, and price per linear foot so you can see the real differences.
Confirm that the contractor is fully insured with liability and worker compensation, and ask for a certificate of insurance before work begins.
Ask if the contractor removes failed or contaminated insulation before spraying, or if they will spray over the existing material and why.
Verify that the contractor has a physical address in Savannah or the surrounding area and is reachable by phone after the job is done if questions come up.
Check that the contractor respects any HOA rules or architectural guidelines if your home is in a master-planned community, though rim joist work is rarely visible outside.

The best contractors are the ones who walk away from a wet crawl space or a leaking rim board and tell you to fix the moisture first, because foam over a wet substrate will fail. That discipline is a selling point, not a reason to hire someone else.

Ready to get started? Contact us for a free estimate or call (912) 483-1976 to discuss your rim joist and band joist sealing project.

Rim Joist & Band Joist Spray Foam in Savannah: Pricing Guide

Service	Price	Details
Small rim joist seal	Starting at $650	Short perimeter, good access, open cell foam, 4 to 6 inches, minimal prep required
Standard rim joist seal	Starting at $1,200	Full perimeter, 130 to 160 linear feet, closed cell foam, 2 to 3 inches, moderate crawl space access
Large home or difficult access	Starting at $1,800	Full perimeter over 180 linear feet, low headroom, existing insulation removal, or complex substrate prep
Full rim cavity removal and replacement	On estimate	Includes hauling out failed insulation, moisture remediation assessment, and complete foam seal from band board to foundation wall
Travel and estimate	Included	No extra charge for jobs in Savannah and surrounding areas, free written estimate within 24 hours of your call

Indicative pricing, the exact cost depends on square footage, finish, and site access. Free personalized estimate within 24h at (912) 483-1976.

Rim Joist & Band Joist Spray Foam: service areas

📍 Savannah 📍 Pooler 📍 Richmond Hill 📍 Garden City 📍 Port Wentworth 📍 Bloomingdale 📍 Thunderbolt 📍 Tybee Island 📍 Wilmington Island 📍 Skidaway Island 📍 Isle of Hope 📍 Rincon 📍 Hinesville 📍 Statesboro 📍 Springfield 📍 Guyton

Frequently asked questions: Rim Joist & Band Joist Spray Foam in Savannah

How much does rim joist and band joist spray foam cost in Savannah?

Rim joist foam in Savannah typically starts at around $650 for a small crawl space and ranges up to $2,500 or more for a full perimeter seal on a large home. The cost depends on linear footage, foam type (closed cell or open cell), thickness, and how easy the crawl space is to access. A typical 1,200-square-foot home with a 160-foot rim perimeter costs between $1,200 and $1,800 for a closed cell seal. Get 2 or 3 written estimates with R-value and thickness specified so you can compare accurately.

What is the difference between rim joist foam and crawl space encapsulation?

Rim joist foam seals only the rim cavity at the floor line where the band board sits on the foundation. Crawl space encapsulation is a larger project that includes sealing the entire crawl space, installing a vapor barrier on the floor, and often running a dehumidifier. Rim joist foam is the smaller, more affordable entry point and stops drafts and humidity at the floor line. Encapsulation is a separate trade and is not included in our spray foam work.

Do I need a permit for rim joist spray foam in Savannah?

Rim joist foam itself rarely requires a permit in Savannah, but permitting rules vary by city and by what the work involves. If your home is in the Historic District or a protected zone, or if the rim joist work is part of a larger crawl space project, the building department may have specific rules. We help you understand what applies at your address, and we recommend checking with the local building department before starting any work. Contact the City of Savannah Development Services or your local city hall to confirm.

How long does a rim joist and band joist spray foam job take?

A typical rim joist seal takes 4 to 6 hours on site for a 1,200-square-foot home with good crawl space access. Larger homes or difficult access can take 8 to 10 hours. The foam then cures over 24 to 48 hours with mechanical ventilation running. You can return to the crawl space after the cure window is complete, but the foam continues to harden fully over several weeks. Most homeowners see no disruption to their daily life during the cure period.

What is the best time of year to seal rim joists in Savannah?

Spring and fall are the best times for rim joist foam in Savannah because the humidity is lower and the crawl space is easier to work in. Summer brings high humidity and heat that can slow the cure and make the crawl space uncomfortable for the crew. Winter is mild and workable, but the risk of moisture in the crawl space is highest during the warm months when humid air pushes inward. If your crawl space has a moisture problem or active leaks, it is better to address those first, then schedule the foam work once the space is dry.

Can you spray foam over existing rim insulation?

Yes, if the existing insulation is sound and dry, we can spray closed cell foam over it as a top-up to increase the R-value and seal any gaps. If the existing insulation is wet, settling, contaminated, or harboring mold or rodents, we remove it first and spray a new seal. We never spray foam over a wet substrate, so if the existing insulation is damp, we walk away and recommend you fix the moisture source first.

Is spray foam insulation safe for rim joists in older Savannah homes?

Yes, spray foam is safe for rim joists when installed correctly by a qualified contractor. Closed cell foam provides a vapor barrier and protects the rim board from moisture. Open cell foam allows vapor to pass through and is a good choice if the crawl space is already dry. The key to safety is proper installation: controlled thickness per pass, correct drum temperature and ratio, mechanical ventilation during cure, and a stated re-entry window of 24 to 48 hours. We provide that level of control on every job.

Will rim joist foam stop cold floors over my crawl space?

Yes, rim joist foam reduces heat transfer from the living space to the unconditioned crawl space below, which reduces cold floors in winter. The improvement depends on how much of the thermal boundary is sealed. Foam on the rim joist alone will help, but the biggest gains come when you also seal the band board, insulate the crawl space walls, or seal other air leaks in the floor system. Talk to us about the full picture so you understand what to expect from a rim joist seal alone.

Do you remove old insulation from the rim before spraying foam?

Yes, if the existing insulation is failing, wet, or contaminated, we remove it and haul it away before spraying new foam. If the existing insulation is sound and dry, we can top it up with closed cell foam. We do not spray foam over a wet or questionable substrate, so if we find moisture or mold during the inspection, we tell you upfront and recommend a separate remediation step before the foam work begins.

Are you fully insured for rim joist spray foam in Savannah?

Yes, we are fully insured with liability and worker compensation coverage. We carry a certificate of insurance and are happy to provide it before work begins. Licensing for spray foam contractors varies by city and county in Georgia, so we recommend verifying the requirements at your local building department and confirming that any contractor you hire meets those standards. We work to the code in force at your address and help you navigate what applies at your location.
